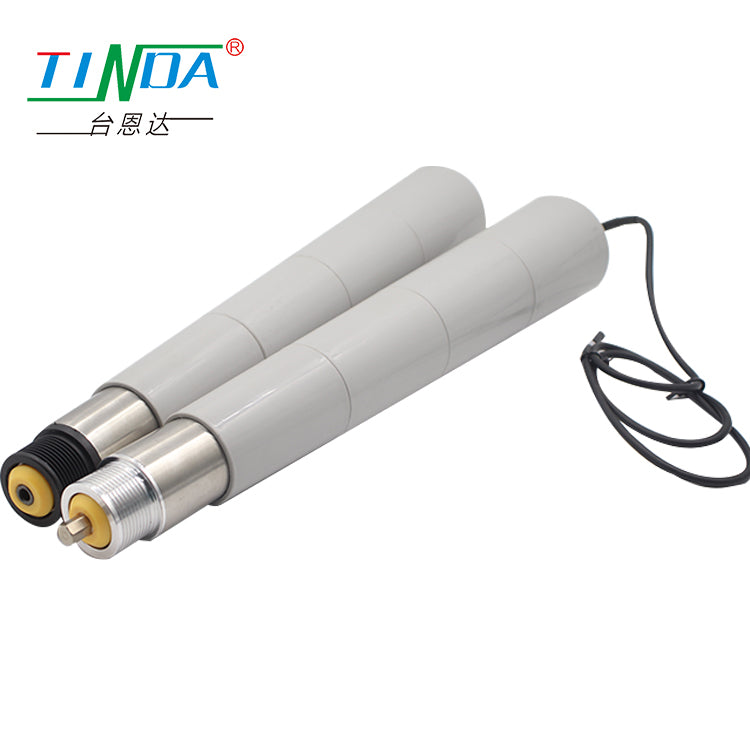

Unpowered roller
Unpowered roller
Couldn't load pickup availability
- Unpowered rollers are cylindrical objects typically made of metal, plastic or rubber that are used in conveyor systems to move materials or products along a designated path.
- They are not driven by any external power source and rely solely on the force of gravity or manual pushing to move the objects along.
- Unpowered rollers can come in various shapes and sizes, depending on the specific application they are being used for.
- They are often found in industries such as manufacturing, distribution, and warehousing where large volumes of products need to be moved efficiently.
- While unpowered rollers are generally low maintenance, regular cleaning and inspection are necessary to ensure their proper functioning and prevent damage or wear over time.
POWERED DRIVEN ROLLERS
Features:
Powered driven rollers is an efficient DC drive for unit load handling systems, e.g. for transporting cartons, trays, workpiece carriers or tyres at normal ambient temperatures. Suitable for straight conveyors, small belt conveyors. It can also be used in shuttle systems, aligning conveyor segments or transfers or other "conveyor system branches".
| ECO mode | BOOST mode | |
|---|---|---|
| LOAD PLATFORM(TRANSFER OF WEIGHT) | ＜30kg | ＜50kg |
| LSPEED CODE | 15M | |
| LRATED TORQUE | 2.97N▪M | 5.4N▪M |
| LSPEED RANGE | 2.0~20.3m/min | 2.0~14.7m/min |
| LHIGHEST EFICIENCY | 2400 pieces/hour | |
NON-POWERED RPLLERS
Features:
Non-powered rollers is a conveyor used in an automated final assembly line. The mechanical part is mainly composed of a frame, a drum and a guide and a guard. According to product process requirements, manual push transfer to complete the required function.
| plpe diameter | Wall thickness | trummion | Simplified form material |
|---|---|---|---|
| PVC | |||
| Φ20 | 1.1 | Φ6 | √ |
| Φ25 | 1.8 | Φ8 | √ |
| Φ30 | 1.8 | Φ8 | √ |
| Φ38 | 2.0 | Φ8/Φ10 | √ |
| Φ50 | 2.5 | Φ8/Φ10/12 | √ |
Step 1 : The shaft head is processed by internal welding and our iron core is processed by first-class steel to achieve high precision and high quality.
Step 2 : In the production process of each rubber roller.we will conduct 3 dynamic balance tests,Will ensure the use effect.Generally, if it can be displayed within 10g on a dynamic balance device, it is called dynamic balance. But we can do less than 2 grams
Step3: Our rubber material is imported from Japan,United States, and then mix the rubber materials According to customer requirements. We will record Every time we mix rubber materials, we need a formula Small pieces are cured and tested for 24 hours Hardness, flexibility, resilience, etc., only need to meet Customer request
Step4: We have more than 10 running-in machines, whichcan quickly and effectively control each size of therubber roller to meet the customer's drawing requirements
