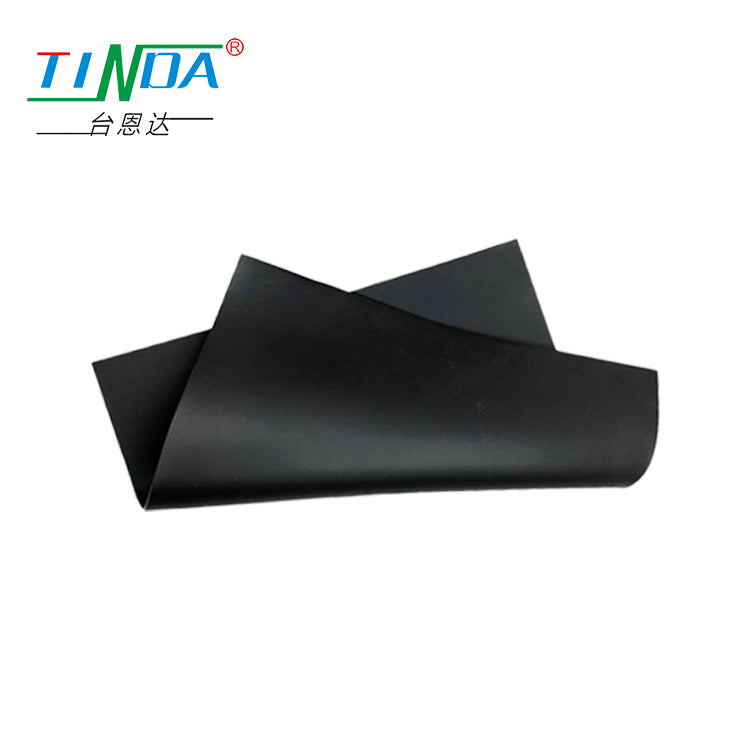

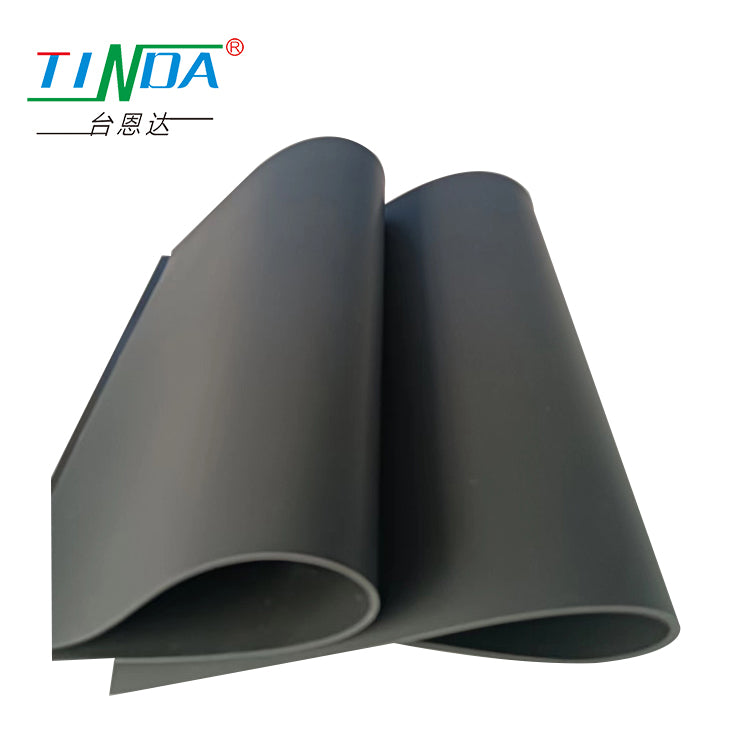

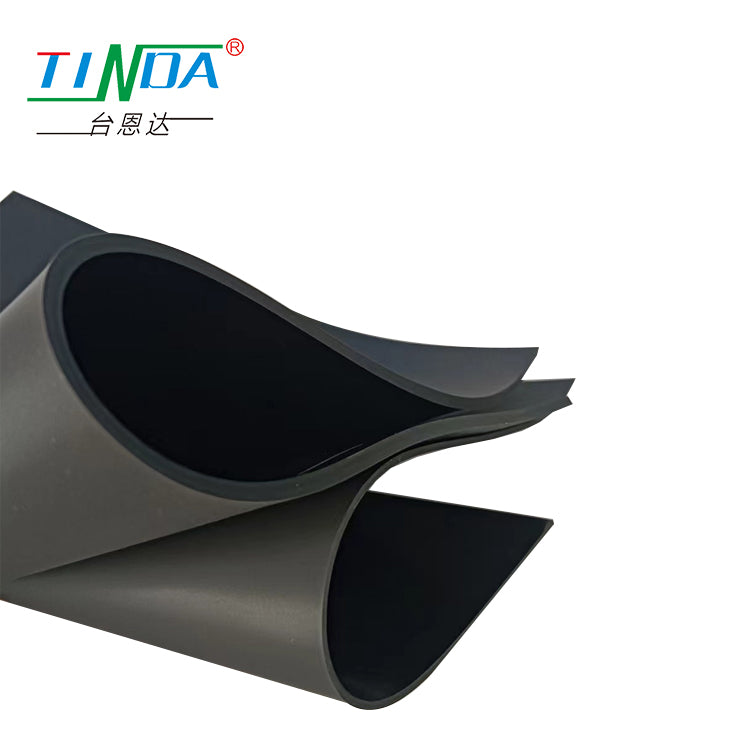

Thermoplastic elastomer thin carbon silicone rubber sheet medical grade conductive high tension rubber sheet

Thermoplastic elastomer thin carbon silicone rubber sheet medical grade conductive high tension rubber sheet

Regular price $22.00 USD
Regular price $24.00 USD Sale price $22.00 USD
Sale Sold out
  1. Thermoplastic elastomer thin carbon silicone rubber sheet is a composite material that combines the properties of thermoplastic elastomer (TPE), carbon silicone rubber, and conductive high tension rubber.

  2. The TPE component provides flexibility and durability, allowing the sheet to be easily formed or molded to fit specific applications.

  3. The carbon silicone rubber component adds strength and durability while also providing good electrical conductivity and resistance to heat.

  4. The conductive high tension rubber layer provides an additional level of protection against electrostatic discharge and can help prevent damage to sensitive electronic components.

  5. This composite material is suitable for a wide range of applications, including medical devices, where it can be used as a protective layer or sealant to prevent contamination or fluid leaks. It is known for its reliability, durability, and long service life.

View full details

It has sealing and water vapor sealing ability. It has good electromagnetic shielding, and can provide good conductivity under certain pressure. lt has high and low temperature resistance and electrolytic corrosion resistance

Test standard Unit 8520 8700 8710 8800 8812 8813 8817
base material --- --- si si si si si si si
Conductive filling material --- --- --- Ag/Cu Ag/A1 Ag/Ni Ni/C Ni/C Ni/C
Volume resistivity MIL-DTL-83528C mOhm --- 2 8 15 8 8 12
cm
Density No curing --- g/cm³ 0.9 2.5 1.7 2/6 2 1.9 1.6
After curing ISO 2781 1.1 2.9 1.9 3.1 2.2 2.1 1.9
Hardness ISO 7619 shore 40 55 65 55 80 73 63
A
Tensile strength ISO 37 Mpa 5.6 2.1 2 2.9 2.8 2.5 2.6
Largest elongation ISO 37 % 570 310 140 240 100 170 260
Tear strength ISO 34-1C N/mm 24 12 14 14 13 15 16
The matAfter moldingEffect
of shieldingcan
0.3-9Ghz Nolatocavity to cavity testmethod dB --- --- 70 107 --- --- ---
0.3-20Ghz 75 --- --- 130 130 110

Excellent flame retardant. Goodelectrical insulation performance.Good flexibility, high compression rate

Surface fit

Good flexibility high compression rate

Excellent flame retardant

Good electrical insulation

type Color Qi electric breakdownPressure
(VAC)
Thermal limit@50psi
(C-inW)
The volume resistance
(ohm-cm)
Tinda500 Brown >6000 0.45 1022
Tinda5000 Double Claro >6000 0.35 1022
Tinda100 Whtie >6000 -- 1022
Tinda300 Yellow >6000 0.53 1022
Tinda400 Gray >5500 0.63 1022
Tinda3000 Gray >6000 0.55 1022
TindaK52-1 Light amber 4200 0.13 4x1014
TindaK52-2 Light amber 7800 0.22 4x1014
TindaK52-3 Light amber 9000 0.31 4x1014
