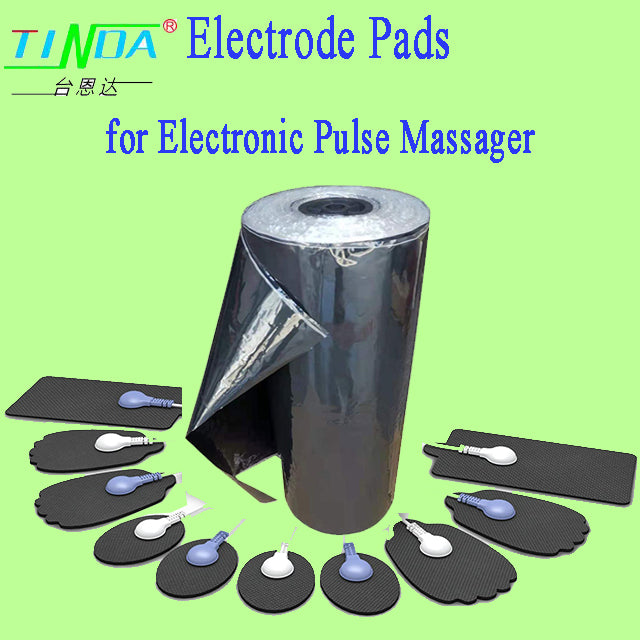

Unbelievable Low Price Factory Direct Sale To switzer Land EMS Physical Therapy Electrode Low Resistance 50 Ohm rubber Sheet

Unbelievable Low Price Factory Direct Sale To switzer Land EMS Physical Therapy Electrode Low Resistance 50 Ohm rubber Sheet

Regular price $19.00 USD
Regular price $22.00 USD Sale price $19.00 USD
Sale Sold out

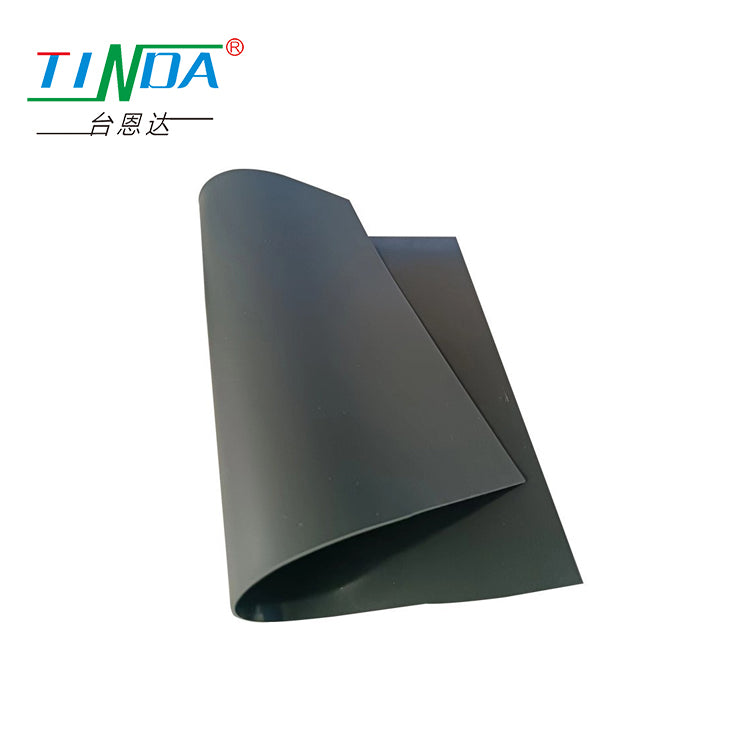

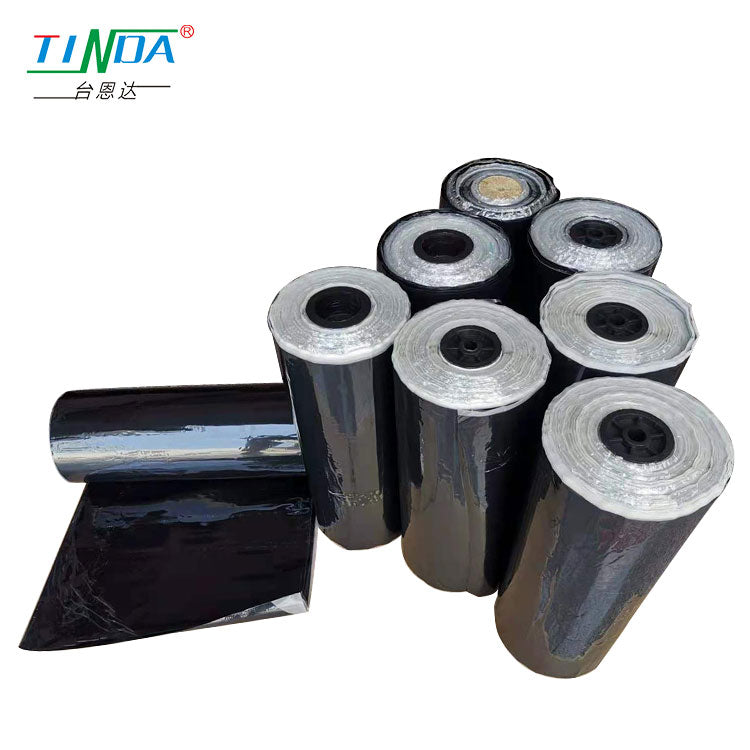

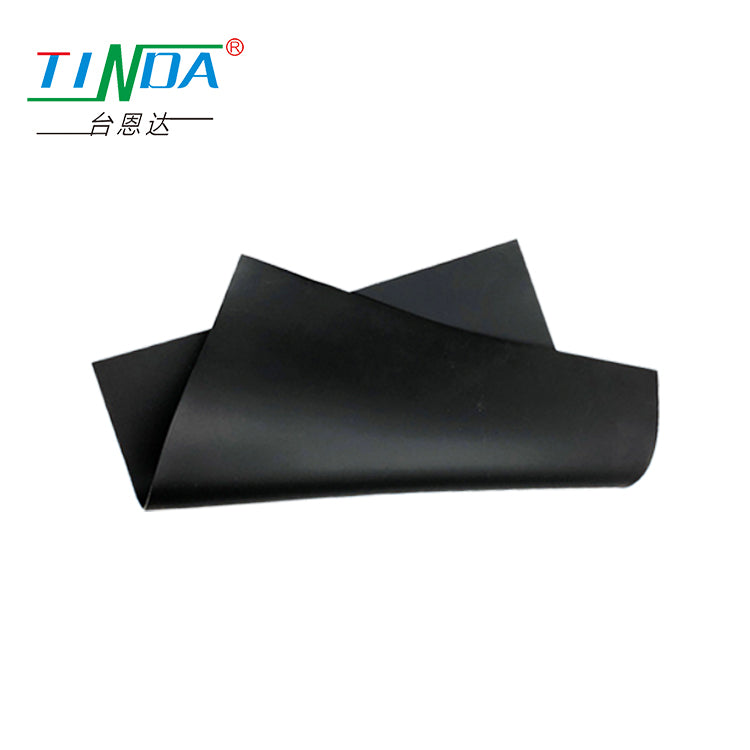

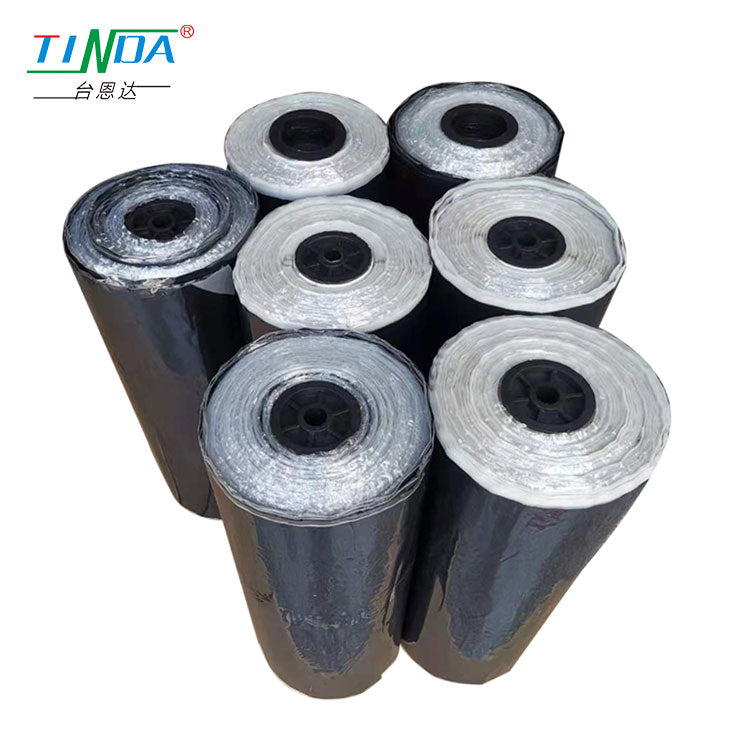

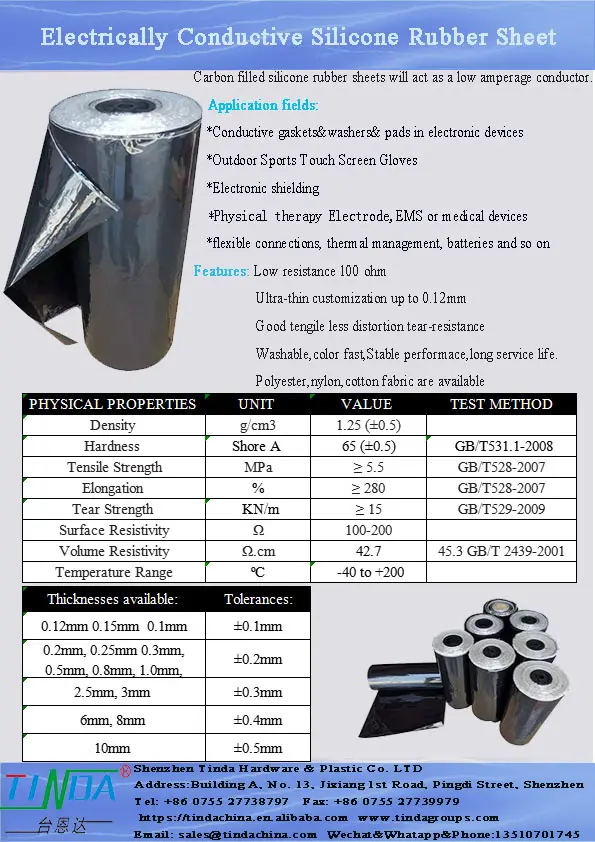

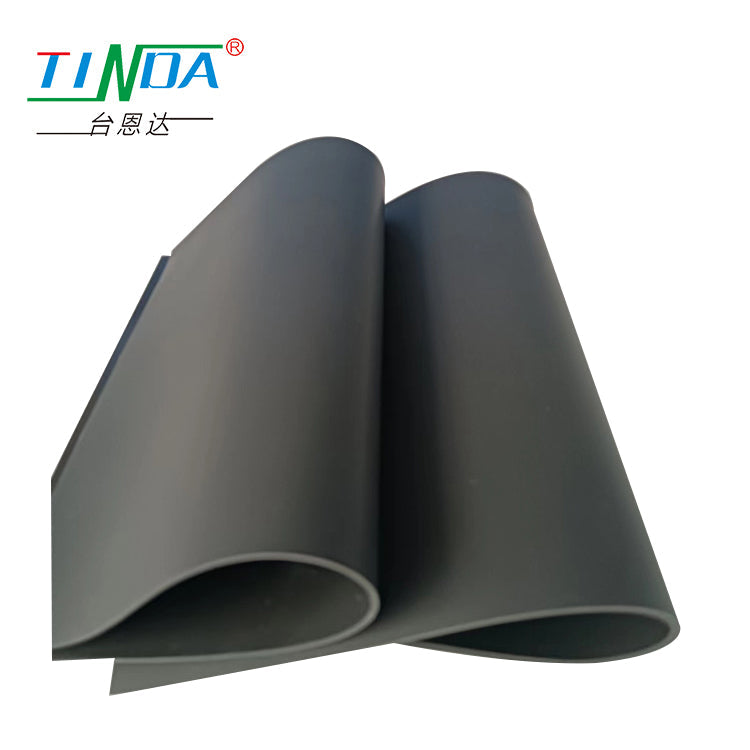

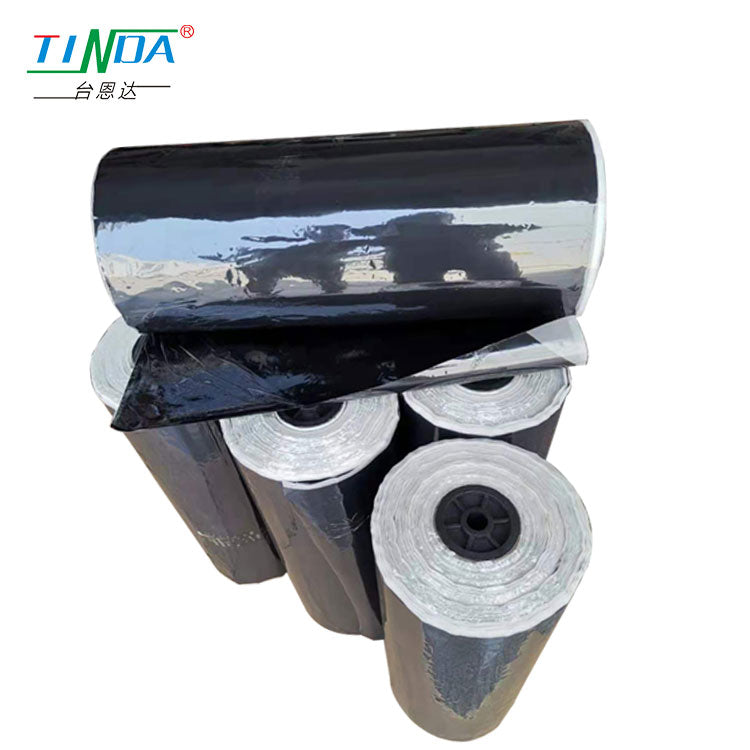

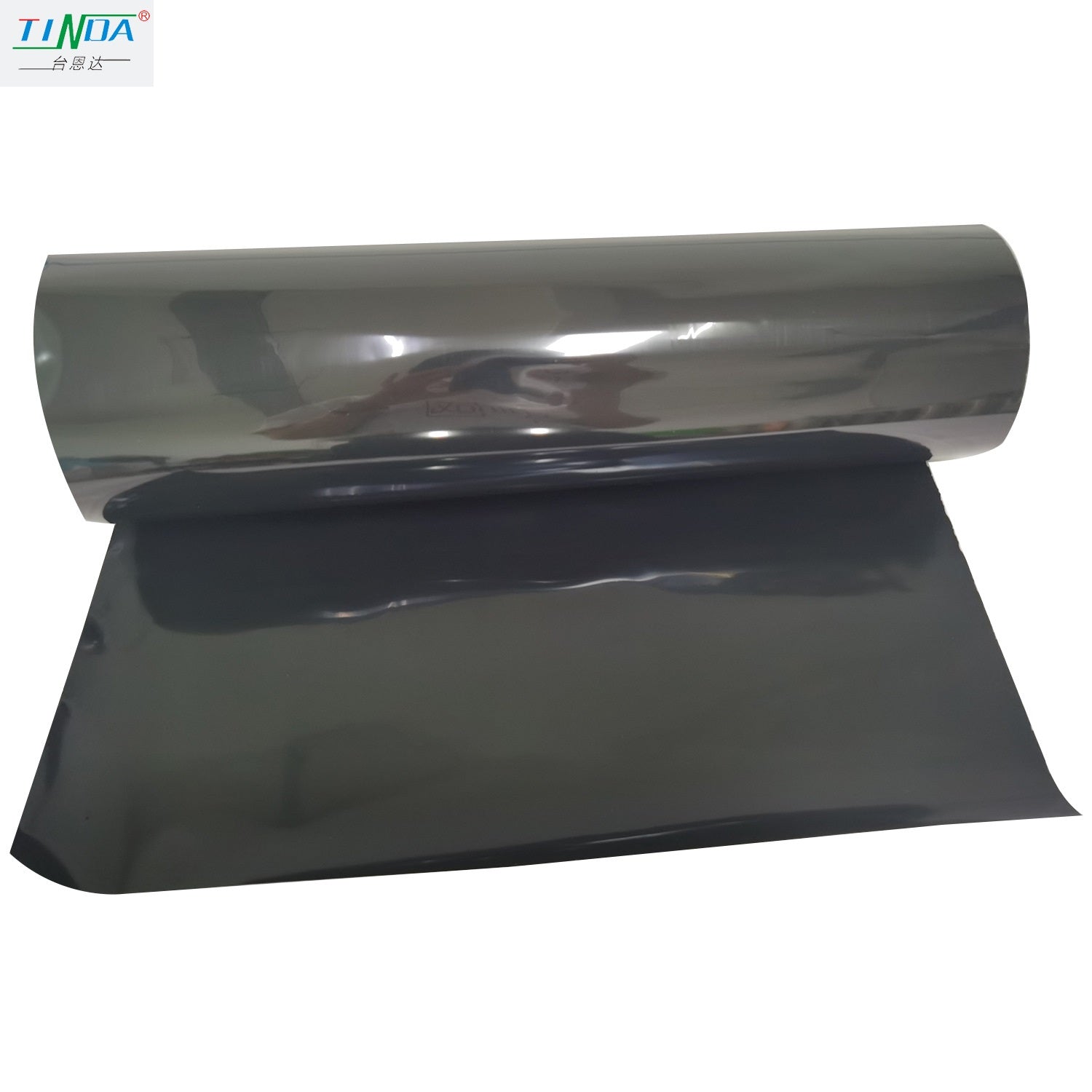

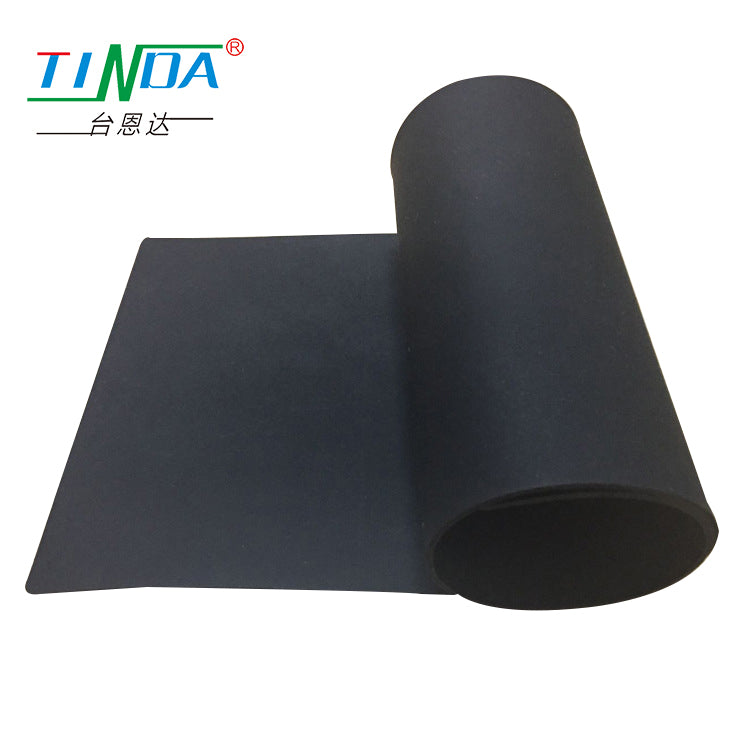

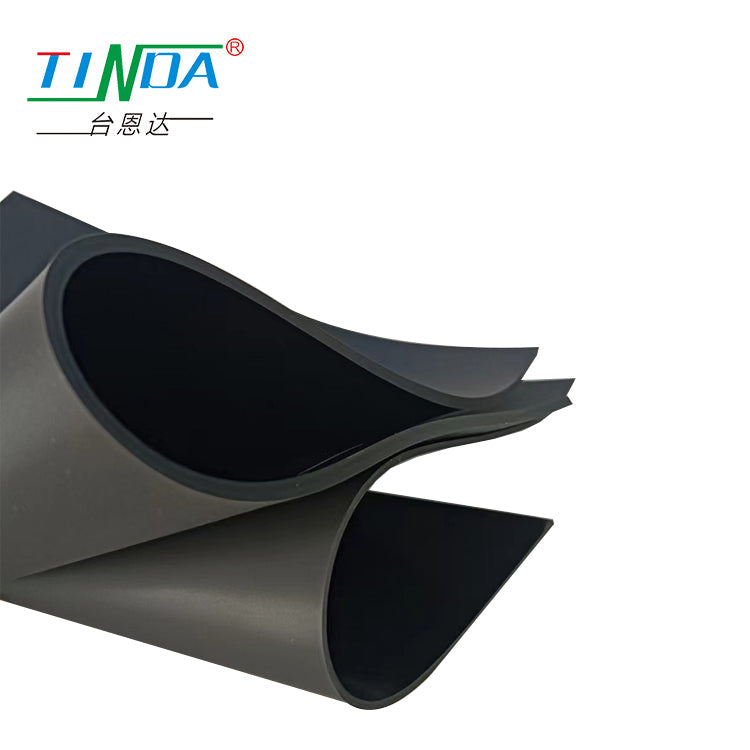

  1. A conductive rubber sheet is a type of elastomer material that contains conductive particles, such as carbon or graphite, evenly distributed throughout its structure.

  2. The conductive properties of the rubber sheet make it suitable for use in a wide range of applications where static electricity buildup or electromagnetic interference can cause problems, such as in electronic devices and manufacturing processes.

  3. Conductive rubber sheets can be used as gaskets, seals, or grounding pads to help dissipate static charges and prevent electrical arcing.

  4. The rubber sheet can also be used as a protective layer on surfaces that may come into contact with sensitive equipment or materials, helping to prevent damage from electrostatic discharge.

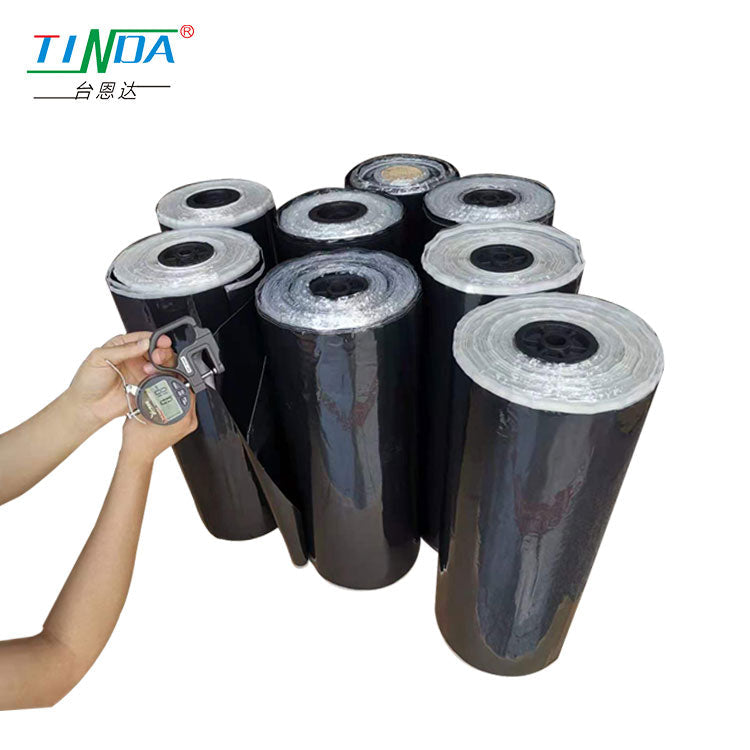

  5. Conductive rubber sheets are available in various thicknesses, widths, and lengths, and can be customized to meet the specific needs of different applications. They are known for their durability, flexibility, and long service life.

View full details

It has sealing and water vapor sealing ability. It has good electromagnetic shielding, and can provide good conductivity under certain pressure. lt has high and low temperature resistance and electrolytic corrosion resistance

Test standard Unit 8520 8700 8710 8800 8812 8813 8817
base material --- --- si si si si si si si
Conductive filling material --- --- --- Ag/Cu Ag/A1 Ag/Ni Ni/C Ni/C Ni/C
Volume resistivity MIL-DTL-83528C mOhm --- 2 8 15 8 8 12
cm
Density No curing --- g/cm³ 0.9 2.5 1.7 2/6 2 1.9 1.6
After curing ISO 2781 1.1 2.9 1.9 3.1 2.2 2.1 1.9
Hardness ISO 7619 shore 40 55 65 55 80 73 63
A
Tensile strength ISO 37 Mpa 5.6 2.1 2 2.9 2.8 2.5 2.6
Largest elongation ISO 37 % 570 310 140 240 100 170 260
Tear strength ISO 34-1C N/mm 24 12 14 14 13 15 16
The matAfter moldingEffect
of shieldingcan
0.3-9Ghz Nolatocavity to cavity testmethod dB --- --- 70 107 --- --- ---
0.3-20Ghz 75 --- --- 130 130 110

Excellent flame retardant. Goodelectrical insulation performance.Good flexibility, high compression rate

Surface fit

Good flexibility high compression rate

Excellent flame retardant

Good electrical insulation

type Color Qi electric breakdownPressure
(VAC)
Thermal limit@50psi
(C-inW)
The volume resistance
(ohm-cm)
Tinda500 Brown >6000 0.45 1022
Tinda5000 Double Claro >6000 0.35 1022
Tinda100 Whtie >6000 -- 1022
Tinda300 Yellow >6000 0.53 1022
Tinda400 Gray >5500 0.63 1022
Tinda3000 Gray >6000 0.55 1022
TindaK52-1 Light amber 4200 0.13 4x1014
TindaK52-2 Light amber 7800 0.22 4x1014
TindaK52-3 Light amber 9000 0.31 4x1014
