Rubber guide roller
Rubber guide roller
Couldn't load pickup availability
-

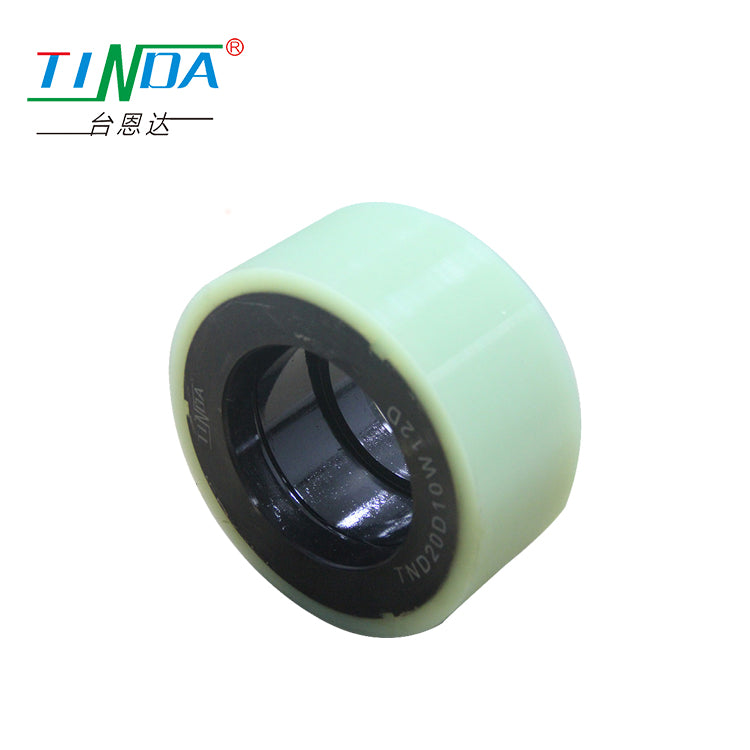

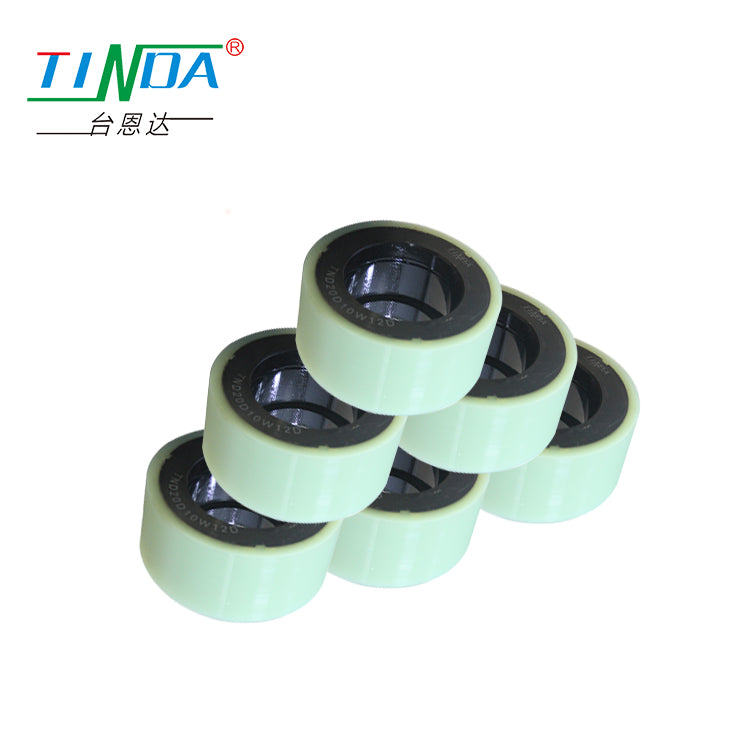

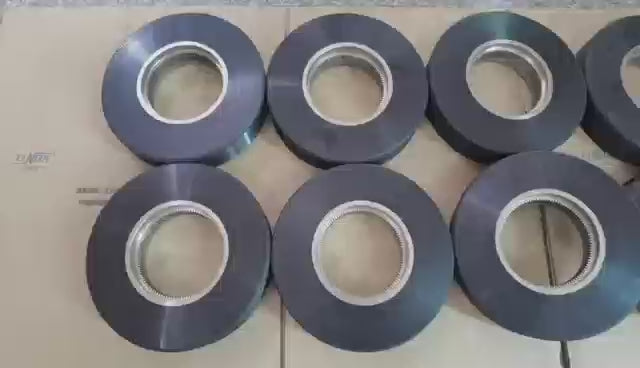

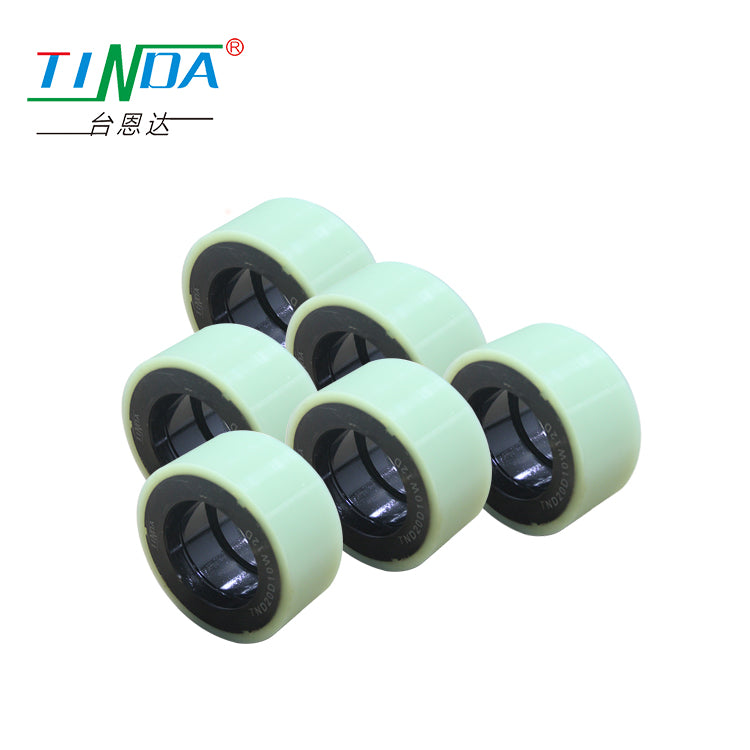

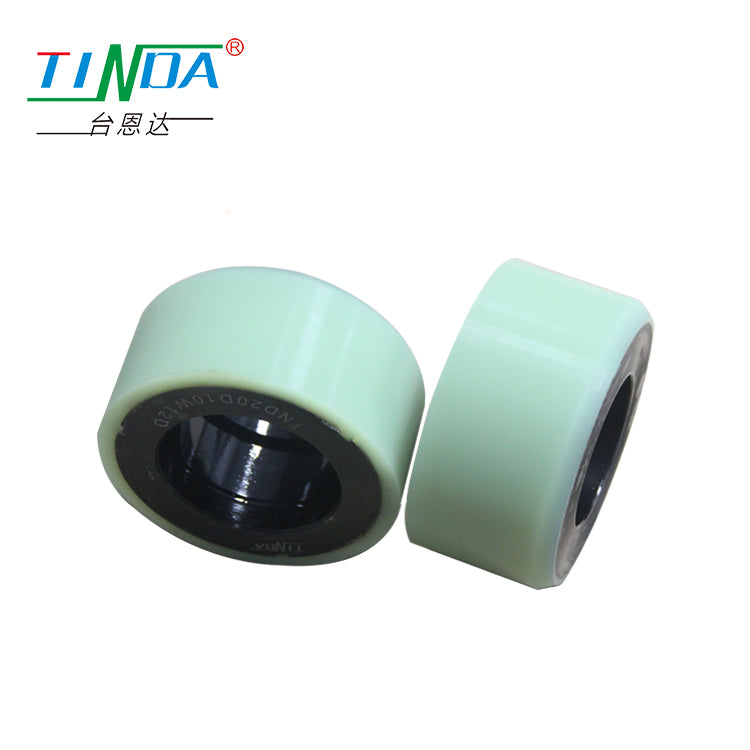

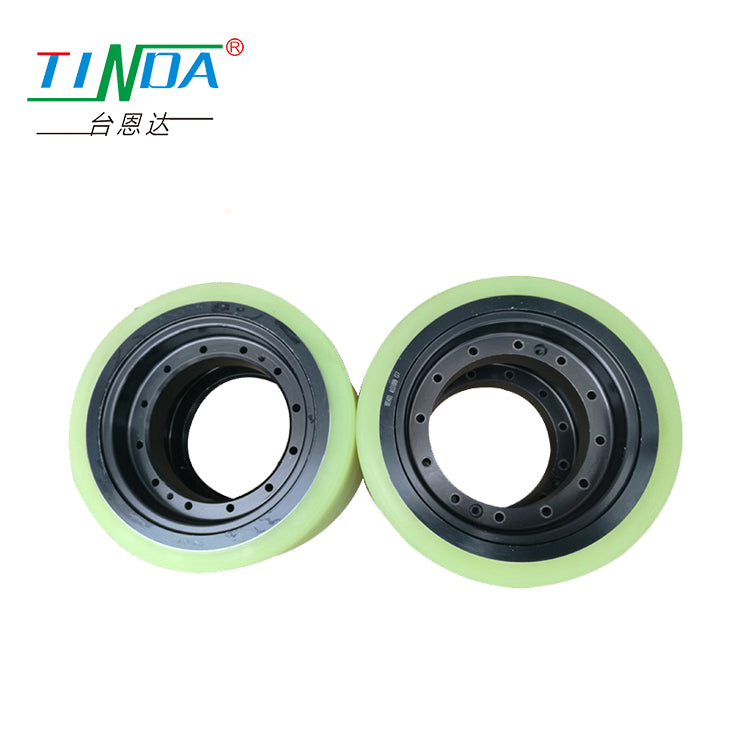

A rubber guide roller is a cylindrical component made of durable rubber material that is typically used to guide, support, or stabilize moving objects in various industrial applications.
-
This type of roller features a smooth and uniform surface texture that allows it to smoothly interact with other surfaces without causing damage or excessive friction.
-
Rubber guide rollers come in different sizes and shapes depending on their intended application, but they all share common characteristics like high abrasion resistance, good shock absorption, and excellent gripping properties.
-
Depending on the specific industry and application, rubber guide rollers may be designed with additional features such as grooves, flanges, or bearings to enhance their performance and durability.
-
Some common applications of rubber guide rollers include conveyor systems, printing presses, paper machines, automotive assembly lines, and packaging equipment, among others. They are an essential component in many manufacturing and production processes, helping to ensure accuracy, efficiency, and safety.
AGV/AMR drive wheel
Product feature:It has the characteristics of high load, low noise, wear and shock absorption, corrosion resistance, ultraviolet resistance, small resistance and no deformation.
Application: Widely used in food processing, factory handling, warehousing and logistics, AGV/AMR robots and other industries.
| KEYWAY | STRAIGHT AFTER THE | WHEEl WIDTH | BEARING | HARDNESS | WHEEL MATERIAL | THE WHEEL CORE |
|---|---|---|---|---|---|---|
| Φ25 | 165MM | 40MM | 420KG | 80A | polyurethane(PU) | steel core |
AGV/AMR driven wheel
Product feature: load, low noise, wear and shock absorption, corrosion resistance, UV resistance, small resistance and deformation.
Application: It is widely used in food processing, factory handling, warehousing and logistics, AGV/AMR robots and other industries.n.
| THE FLANGE | STRAIGHT AFTER THE | WHEEl WIDTH | BEARING | HARDNESS | WHEEL MATERIAL | THE WHEEL CORE |
|---|---|---|---|---|---|---|
| flange | 165MM | 40MM | 450KG | 75A | polyurethane(PU) | aluminium alloy |
AGV/AMR steering wheel
Product feature: size, integrated design, small size, light weight. Simple operation, integrated automatic center function, strong adaptability, various forms，Drive plus steering system.
Application: Can quickly deploy AGV/AMR, mobile robots, etc. It perfectly meets the application requirements of AGV/AMR
| flange | TYPE | DC | actuating motor |
| VOLTACE POWER | W | 400 | |
| ELECTRIC POWER VOLTAGE | V | 48 | |
| ELECTRIC POWER VOLTAGE | V | 300 | |
| ELECTRIC SPEED | Rpm | 3000 | |
| ELECTRIC ELECTRIC CURRENT | A | 10.1 | |
| RATED TORQUE | Nm | 1.27 | |
| LEVEL OF PROTECTION | IP | 65 | |
| ENCODER | Magnetic braiding | increment | |
| ENCODER | resolution ratio | 1024 |
| PARAMETERS OF THE TRACTOR |
TYPE | X | Row speed reducer | |
| SPEED RATIO OF REDUCER | i | 20 | 68 | |
| REDUCER TORQUE | Nm | 100 | 120 | |
| POLYURETHANE LOAD BEARING | Kg | 1000 | 1000 | |
| RUBBER LOAD BEARING | Kg | 900 | 900 | |
| BRAKE TORQUE | Nm | 76 | 358.4 | |
| BRAKE VOLTAGE | V | DC24 | DC24 | |
| MAXIMUM SPEED | M/min | 70.7 | 20.8 | |
| TRACTION | N | 322 | 1036.3 | |
| WEIGHT OF TRACTION | reference | 547 | 1658 | |
| STEERING MOTORPA RAMETERS |
TYPE | DC | servo motor |
| MOTOR POWER | W | 200 | |
| MOTOR VOLTAGE | V | 48 | |
| MOTOR SPEED | Rpm | 3000 | |
| CURRENT OF MOTOR | A | 5.1 | |
| SPEED RATIO OF REDUCER | i | 35+(105: 30) | |
| REDUCER TORQUE | Nm | 35 | |
| LEVEL OF PROTECTION | IP | 65 | |
| ENCODER | Magnetic braiding | increment | |
| ENCODER | resolution ratio | 1024 | |
| LEFT AND RIGHT LIMIT | Io | Normally open, normally closed | |
| MAXIMUM DEGREE OFSTEERING | ± | 140° |
Macnum wheel
Product feature:The McNum wheel has compactstructure and flexible movement, which is verysuitable for the working environment withnarrow and limited space and more right Angleoends
Application: lt is applied to the precision dockingassembly, transportation, and maintenance of so-phisticated machinery and equipment oflargeobjects, such as the maintenance of aerospaceand aviation, and the logistics and handling ofenterprises and factories.
| McNum parameter table | ||||
| DIAMETER OF TIRE | 60mm | 75mm | 100mm | 127mm |
| WEIGHT (SET OF 4) | 0.35kg | 0.45kg | 1.55kg | 2.0kg |
| LOAD CAPACITY (4 LOADS) | 15kg | 15kg | 45kg | 70kg |
| THICKNESS(EXCLUDING COUPLING) | 32mm | 32mm | 51mm | 51mm |
| DIAMETER OF SUPPORTING WHEEL | 3mm | 3mm | 4mm | 4mm |
| NUMBER OF SUPPORTING WHEELS | 8 | 10 | 9 | 12 |
| OUTPUT SHAFT DIAMETER | 4、5、6、8mm | 6、8、10、12、14、15、16mm | ||
| SURFACE TECHNICS | Aluminum alloy, surface sandblasting process | |||
| PROJECT | TRADITIONAL AGV | MCKNUM WHELL OMV |
| Driving wheel form | Usually polyurethane wheels are used | The McKnum wheel |
| Number of driving wheels | 2 PCS | 4 PCS |
| Number of driving wheel components | 2 Groups | 4 Groups |
| Motor direction | Forward. back turn | Forward, backward, left and right transverse movement, zero turning radius, oblique line in any direction, etc |
| Space usage | Big | Small |
| Flexibility of movement | Low | High |
| Cost | Low | Higher |
| Control system | Simpleness | Complex |
| Structural style | Simpleness | Complex |
| Manufacturing requirements | Ordinary | Higher |
| Multi-ground environmental requirements | Higher | High |
