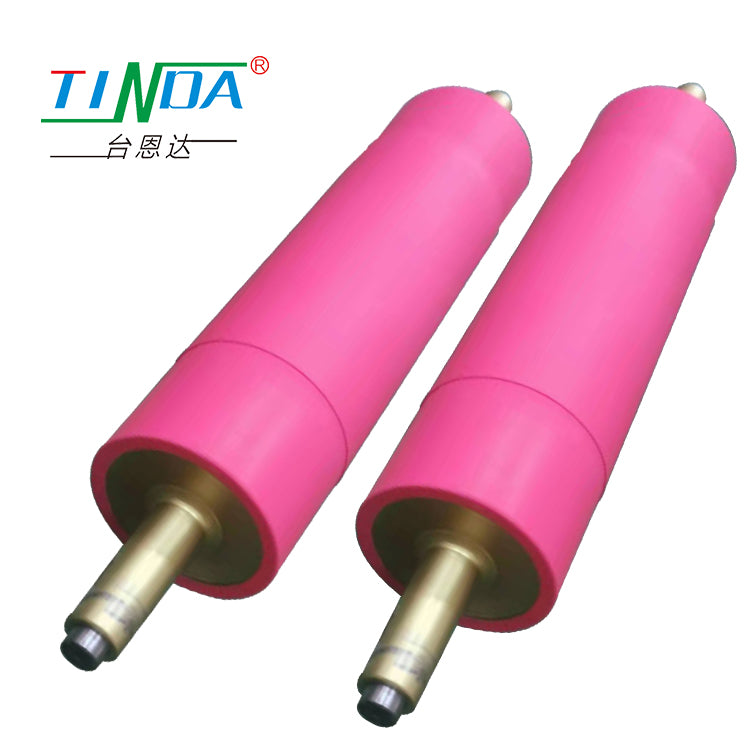

High precision corona rubber roller
High precision corona rubber roller
Couldn't load pickup availability
- A corona rubber roller is used in corona treatment systems to improve adhesion of inks, coatings, and adhesives to plastic films and other substrates.
- The roller is typically made of a conductive material, such as rubber, and is charged with high voltage electricity to create a corona discharge.
- The corona discharge creates a highly reactive surface on the substrate, which enhances the adhesion of coatings and inks.
- The hardness and surface finish of the corona rubber roller can be customized for specific applications.
- Proper maintenance and cleaning of the corona rubber roller is important to ensure consistent and effective corona treatment.
Corona rubber roller-with metal or other materials as the core, covered with resin rubber,Synthetic resin is a kind of synthetic high molecular weight polymer. ls both or super A resin with the inherent characteristics of natural resin. lt is chemically stable and doesnot burn. we Take advantage of its high temperature resistance, ozone resistance, chemical inertness and non-adhesion to plastics, the main To be used for optical film calendering, embossing, embossing, coating, laminatingcorona treatment, etc.Machinery
Multiple specifications Multiple options
Can choose the applicable design with the actual situation, can pressCustomer requirements processing customized
| Papermaking roller | Printing and dyeing roller | Printing roller | |||
|---|---|---|---|---|---|
| Name | Hardness | Name | Hardness | Name | Hardness |
| Press roller | 80°-90° | Press roller | 92°-97° | High speed rotary press roller | 20°-25° |
| Water extrusion roller | 75°-85° | Mercerized roller | 80°-85° | High-speed platform ink roller | 80°-85° |
| Dryer roller | 85°-95° | Mercerizing flat washroller | 80°-85° | General platform ink rolle | 100° |
| copper mesh roller | 35°80° | Flat Wash upper roller | 100° | Offset press grinding roller | 80° |
| Blanket dispensing roller | 95°-100° | Flat Wash lower roll | 80° | General printing ink roller | 85°-90° |
| Case roller | 95°-100° | Rope washing machine roller | 85°-90° | Strong solvent glazing roller | 85° |
| Breast roller | 70°-80° | Tie dyeing roller | 85° | Strong solvent glazing roller | 60°-70° |
| Wool cloth guide roller | 95°-100° | Hollow bending roller | 60°70° | lron printing roller | 95°-100° |
Step 1 : The shaft head is processed by internal welding and our iron core is processed by first-class steel to achieve high precision and high quality.
Step 2 : In the production process of each rubber roller.we will conduct 3 dynamic balance tests,Will ensure the use effect.Generally, if it can be displayed within 10g on a dynamic balance device, it is called dynamic balance. But we can do less than 2 grams
Step3: Our rubber material is imported from Japan,United States, and then mix the rubber materials According to customer requirements. We will record Every time we mix rubber materials, we need a formula Small pieces are cured and tested for 24 hours Hardness, flexibility, resilience, etc., only need to meet Customer request
Step4: We have more than 10 running-in machines, whichcan quickly and effectively control each size of therubber roller to meet the customer's drawing requirements
