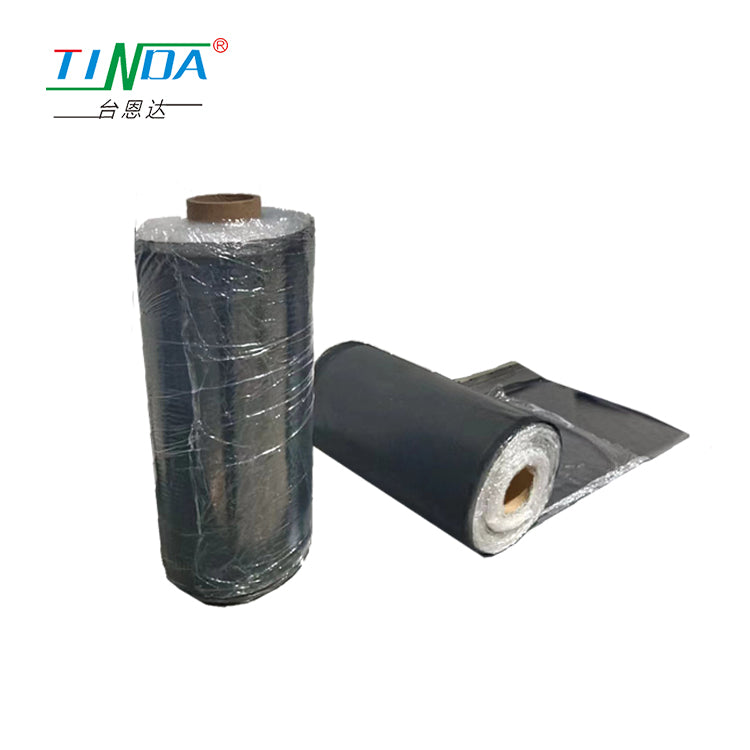

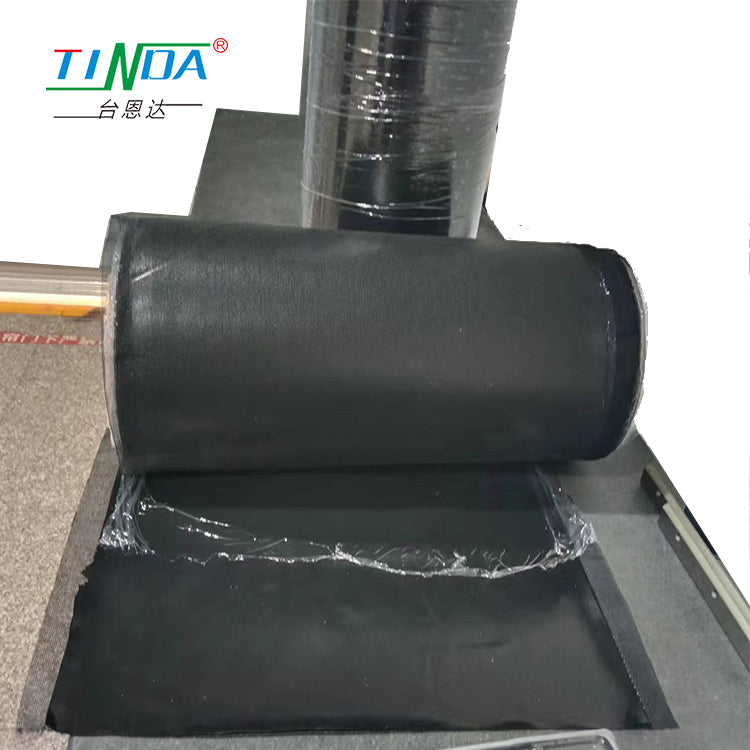

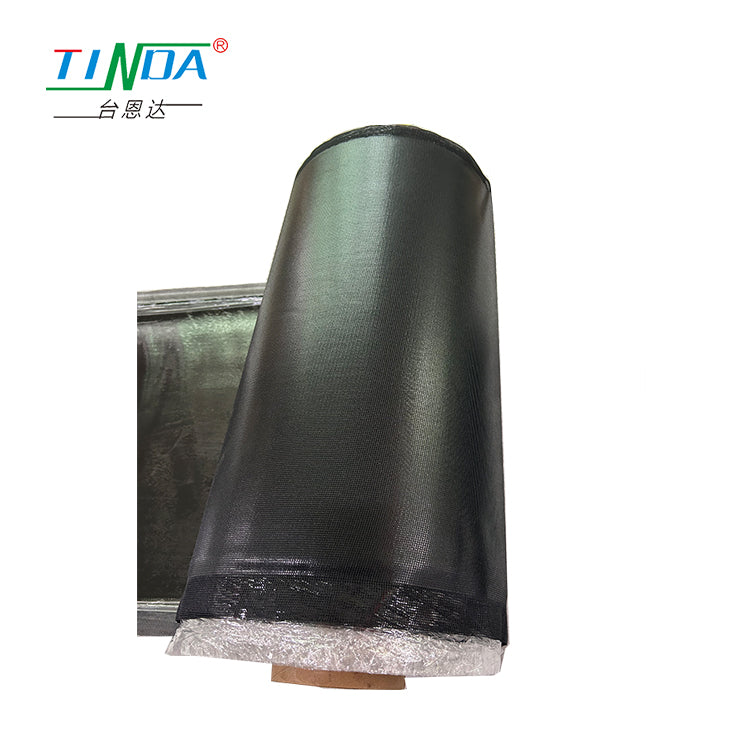

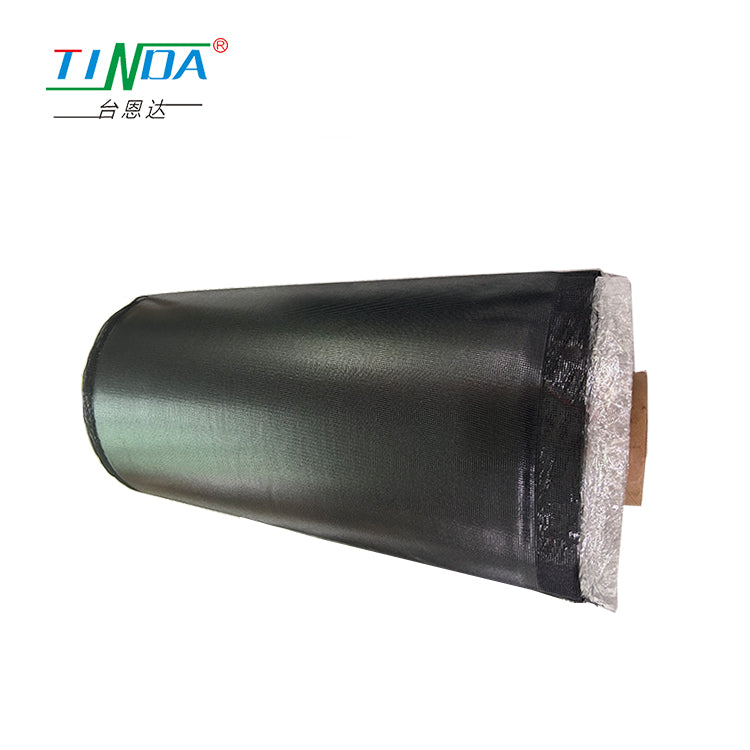

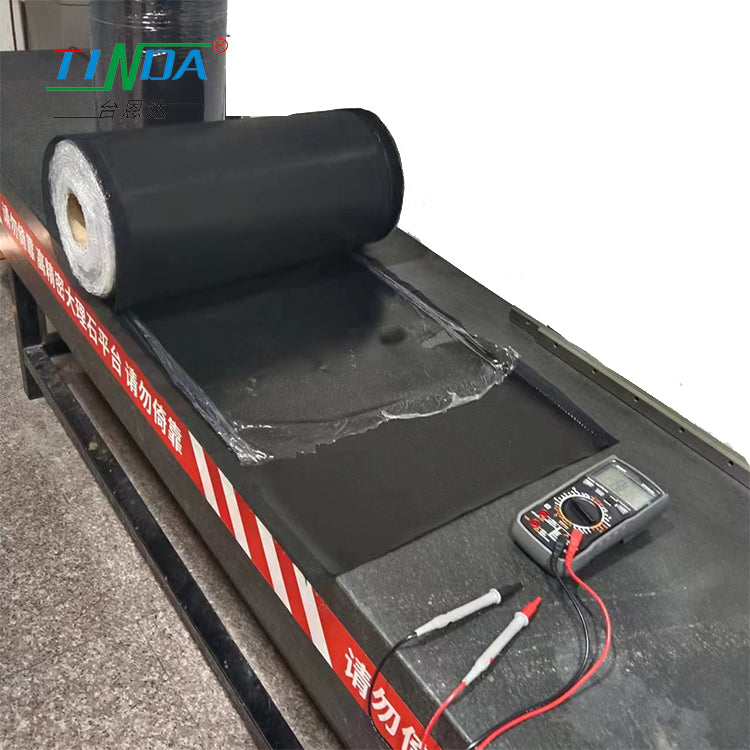

Conductive Rubber Sheet With Mesh
Conductive Rubber Sheet With Mesh
Couldn't load pickup availability
-
A conductive rubber sheet is a type of elastomer material that contains conductive particles, such as carbon or graphite, evenly distributed throughout its structure.
-
The conductive properties of the rubber sheet make it suitable for use in a wide range of applications where static electricity buildup or electromagnetic interference can cause problems, such as in electronic devices and manufacturing processes.
-
Conductive rubber sheets can be used as gaskets, seals, or grounding pads to help dissipate static charges and prevent electrical arcing.
-
The rubber sheet can also be used as a protective layer on surfaces that may come into contact with sensitive equipment or materials, helping to prevent damage from electrostatic discharge.
-
Conductive rubber sheets are available in various thicknesses, widths, and lengths, and can be customized to meet the specific needs of different applications. They are known for their durability, flexibility, and long service life.
It has sealing and water vapor sealing ability. It has good electromagnetic shielding, and can provide good conductivity under certain pressure. lt has high and low temperature resistance and electrolytic corrosion resistance
| Test standard | Unit | 8520 | 8700 | 8710 | 8800 | 8812 | 8813 | 8817 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| base material | --- | --- | si | si | si | si | si | si | si | |
| Conductive filling material | --- | --- | --- | Ag/Cu | Ag/A1 | Ag/Ni | Ni/C | Ni/C | Ni/C | |
| Volume resistivity | MIL-DTL-83528C | mOhm | --- | 2 | 8 | 15 | 8 | 8 | 12 | |
| cm | ||||||||||
| Density | No curing | --- | g/cm³ | 0.9 | 2.5 | 1.7 | 2/6 | 2 | 1.9 | 1.6 |
| After curing | ISO 2781 | 1.1 | 2.9 | 1.9 | 3.1 | 2.2 | 2.1 | 1.9 | ||
| Hardness | ISO 7619 | shore | 40 | 55 | 65 | 55 | 80 | 73 | 63 | |
| A | ||||||||||
| Tensile strength | ISO 37 | Mpa | 5.6 | 2.1 | 2 | 2.9 | 2.8 | 2.5 | 2.6 | |
| Largest elongation | ISO 37 | % | 570 | 310 | 140 | 240 | 100 | 170 | 260 | |
| Tear strength | ISO 34-1C | N/mm | 24 | 12 | 14 | 14 | 13 | 15 | 16 | |
| The matAfter moldingEffect of shieldingcan |
0.3-9Ghz | Nolatocavity to cavity testmethod | dB | --- | --- | 70 | 107 | --- | --- | --- |
| 0.3-20Ghz | 75 | --- | --- | 130 | 130 | 110 | ||||
Excellent flame retardant. Goodelectrical insulation performance.Good flexibility, high compression rate
Surface fit
Good flexibility high compression rate
Excellent flame retardant
Good electrical insulation
| type | Color | Qi electric breakdownPressure (VAC) |
Thermal limit@50psi (C-inW) |
The volume resistance (ohm-cm) |
|---|---|---|---|---|
| Tinda500 | Brown | >6000 | 0.45 | 1022 |
| Tinda5000 | Double Claro | >6000 | 0.35 | 1022 |
| Tinda100 | Whtie | >6000 | -- | 1022 |
| Tinda300 | Yellow | >6000 | 0.53 | 1022 |
| Tinda400 | Gray | >5500 | 0.63 | 1022 |
| Tinda3000 | Gray | >6000 | 0.55 | 1022 |
| TindaK52-1 | Light amber | 4200 | 0.13 | 4x1014 |
| TindaK52-2 | Light amber | 7800 | 0.22 | 4x1014 |
| TindaK52-3 | Light amber | 9000 | 0.31 | 4x1014 |
